Whisper Shake 2.5 Replacement Liner Kit

Whisper Shake 2.5 Replacement Liner Kit

Regular price $390.00 USD
Regular price Sale price $390.00 USD
Sale Sold out
Shipping calculated at checkout.

Replacement liner kit for the Whisper Shake 2.5.  Our urethane reline kit comes with the main bin liner, two ends and enough 2 part urethane to install your new liner.

Included with your reline kit:

  • 1 Urethane Main Bin Liner
  • 1 Urethane liner end with drain door hole
  • 1 Urethane liner end solid
  • 1 Half pint of Part A - Urethane Rubber
  • 1 Half pint of Part B - Urethane Rubber
  • 2, 23 inch strips of wood
  • 2, 12 inch strips of wood
  • 2 pairs of disposable gloves

Items you will need:

  • Disposable paint brush or small (4 to 6 inch) paint roller.
  • Acetone
  • Metal scraper or putty knife
  • Several Disposable Rags
  • 10, spring clamps with an opening of at least 1.5 inches and a depth of 1.5 inches

Installation Instructions:

1) Remove your old liner - Start peeling your liner from one corner removing the main bin liner first then the two ends.  Your liner might peel out, or it might require using a scraper to remove all of the old liner.

2) Once your old liner is removed test fit your new liner.  Install the two end urethane sheets first.  Then lay the main liner across the top off the bin aligning the sides to the ends already in your machine (pictures coming soon).  Press down on the middle two sides at the same time.  It should fit snugly against the two ends.  Continue pressing down on the middle of the main liner until both the front and back edges fit inside the top edge of your machine bin.  If the liner is too tight you can trim a small amount off the liner with a sharp razor knife or circular saw.

3) Once you're comfortable with the liner fit.  Remove the main and both ends of your new liner.  Lay each of the 3 new liner pieces on a flat surface.  Clean each liner several times with acetone.  Ensure you change to a clean rag between each wipe down.  We recommend a minimum of 3 wipe downs with acetone and a clean rag with each wipe down.  Clean the inside of your Whisper Shake machine with acetone.  Ensure there is no residue protruding up that would prevent the liner from laying flat inside your machine.

4) Make sure your liner and urethane rubber are between 65 and 78 degrees F.  Mix the included urethane rubber (Part A and Part B) together in a clean disposable cup (Do not use paper or wax cups).  Mix until there are no swirls or different colors in the cup.  Ensure you scrape the sides and bottom of the cup many times to ensure all material is properly mixed.

5) Use your paint brush to evenly coat the interior of your Whisper Shake bin.  Paying particular attention to adding extra urethane at the top of the bin sides.

6) Once your machine bin interior is coated you can install the liner ends from your kit ensuring you install the liner side you cleaned, toward the sides of your machine.  Also, ensure you do not touch the cleaned sides of your new urethane liner.  Any oils or release agents present on the other side of the liner or hands can prevent the adhesive from properly bonding to the new liner.  Once the ends are installed, you can install the main liner in the same manner you did your test fit.

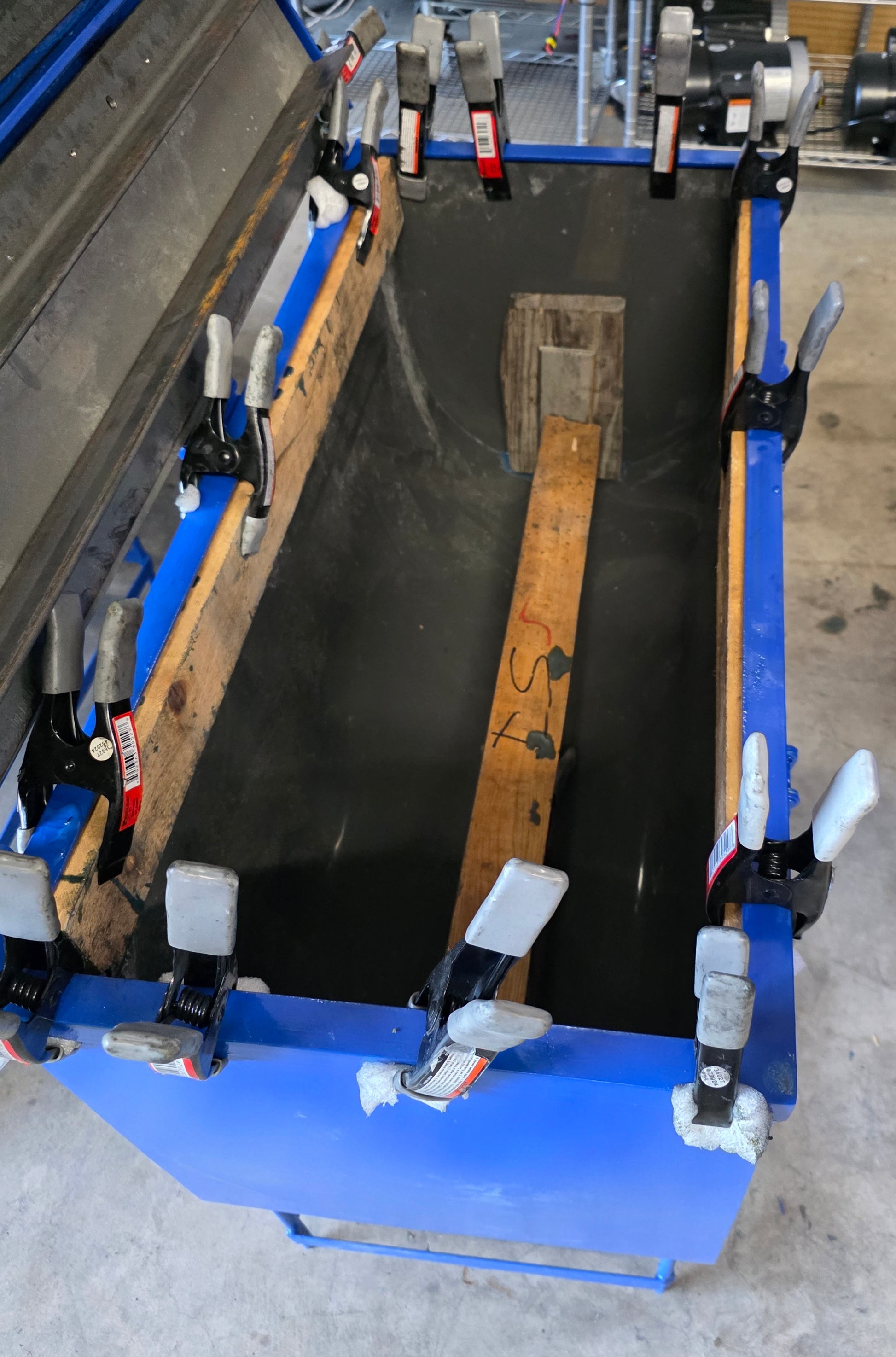

7) Now that your new liner is installed you can use the 4 included small strips of wood and clamps to clamp the top of your new liner to the top edge of your machine.  It's best to place 3 clamps on each long strip (front and back) and 2 clamps on each side.

8) Please ensure the machine temperature stays between 65F and 80F degrees the first 24 hours.  Wait a minimum of 24 hours before unclamping and a minimum of 48 hours before returning your machine to service.
