4 Stainless Marine Engine Motor Mount Replaces Yanmar 4JH #150 and #200

4 Stainless Marine Engine Motor Mount Replaces Yanmar 4JH #150 and #200

$540.00 USD
$540.00 USD
Sale Sold out
Shipping calculated at checkout.

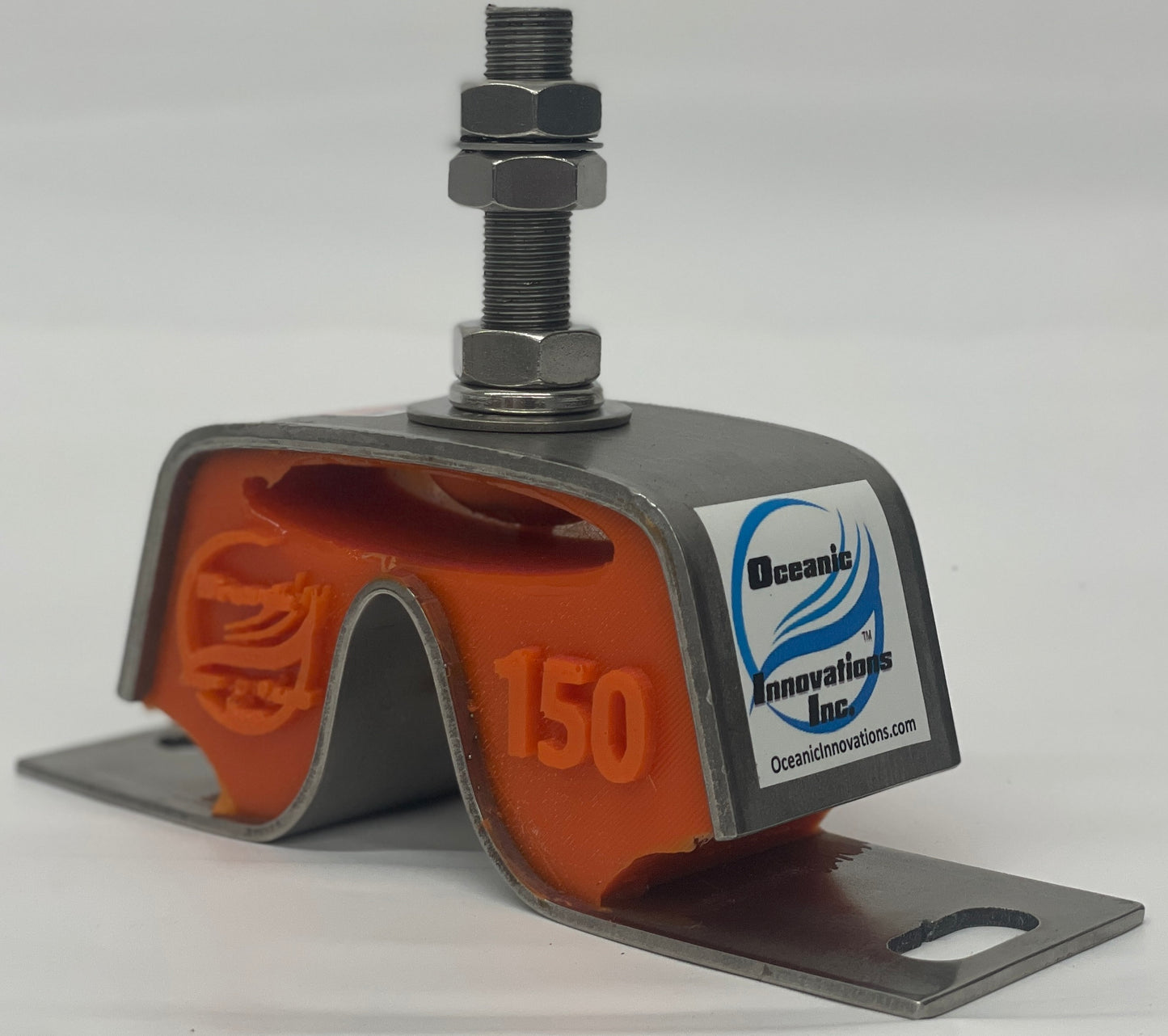

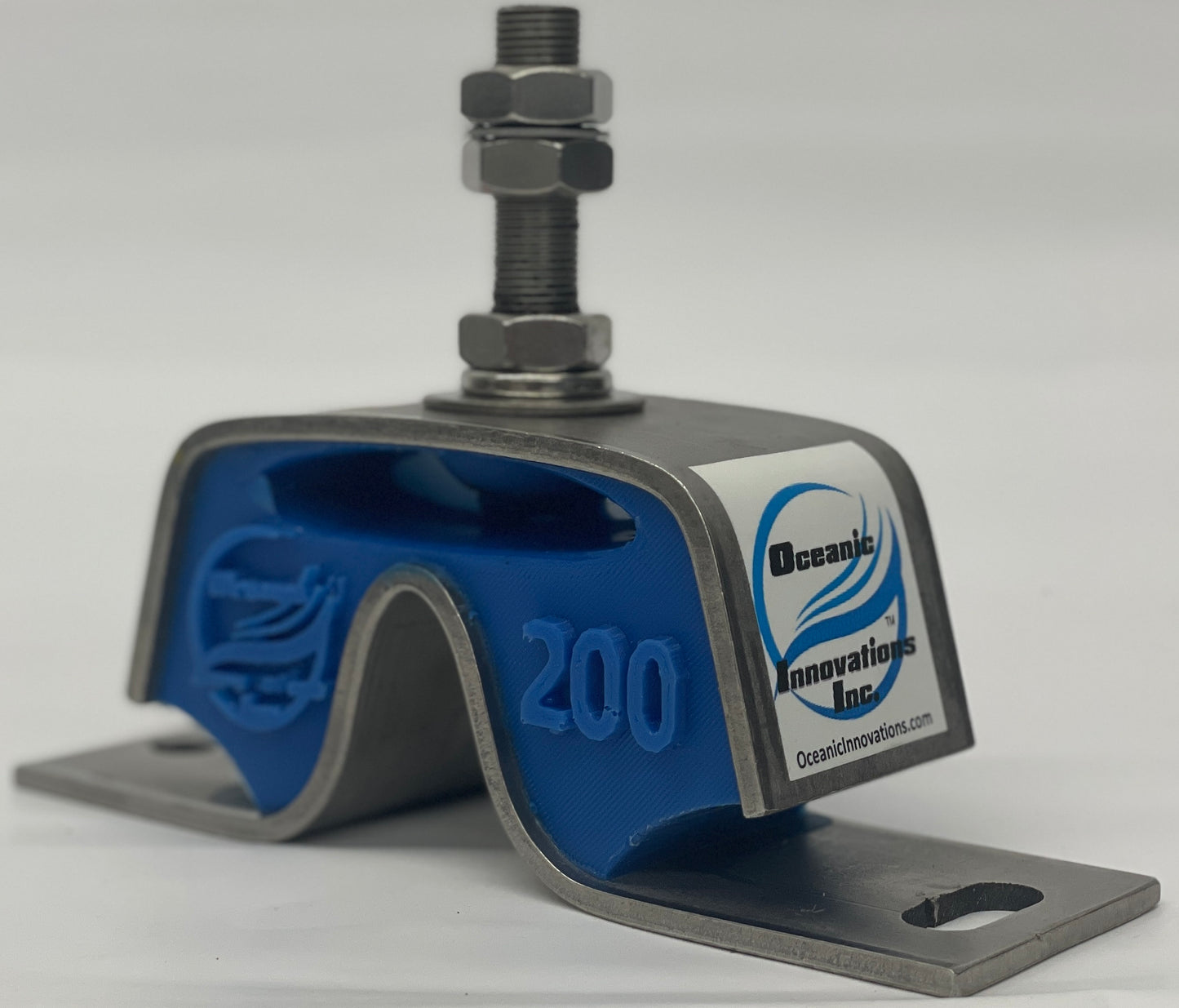

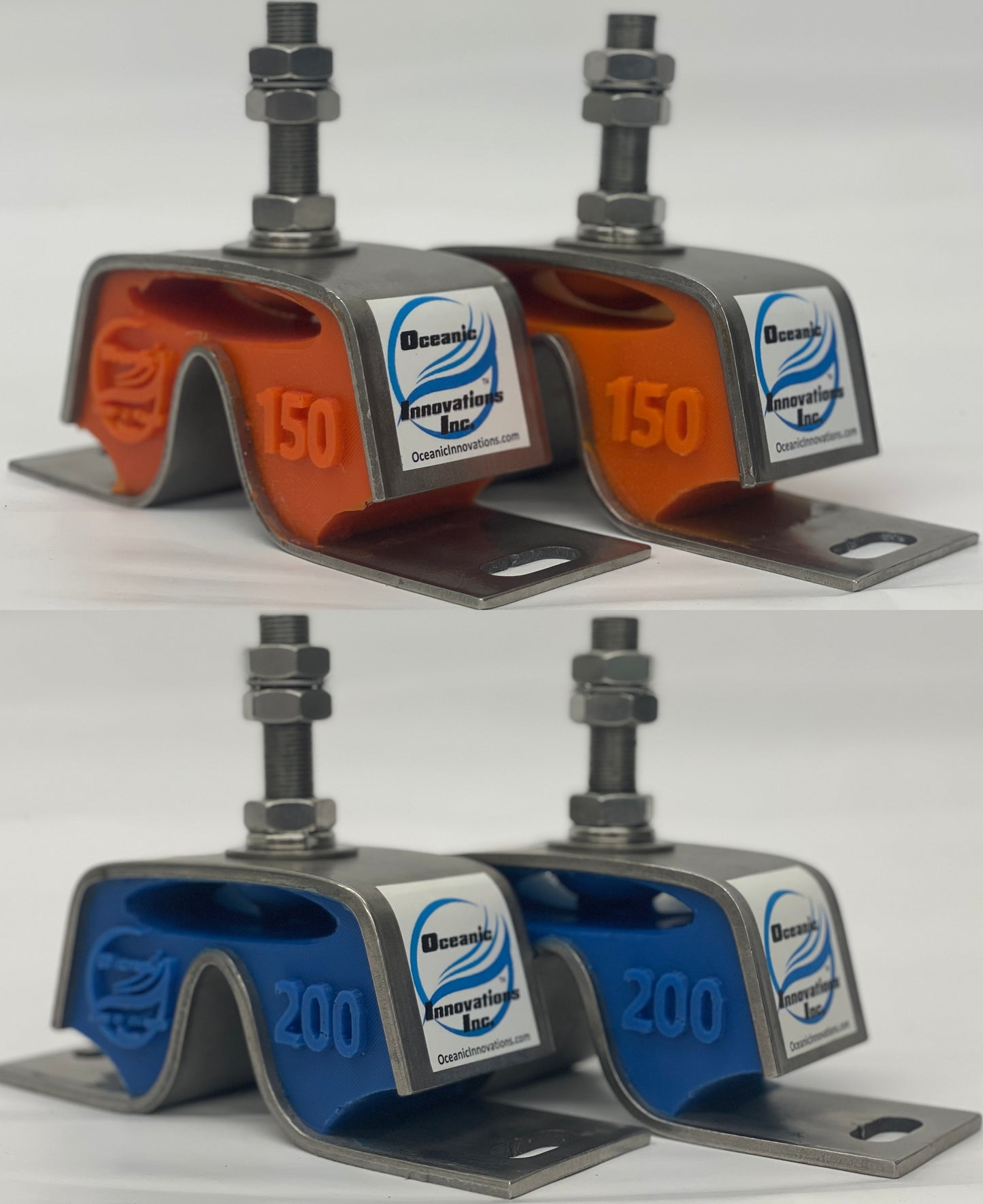

Set of Oceanic Innovations Stainless Steel Urethane Motor Mounts for the 4JH series motors.

This motor mount set is a direct replacement for your Yanmar motor mounts.  Included are 2ea of the 150kg and 2ea of the 200kg maximum load mounts.

Yanmar Part numbers:  #150
Oil Filter Side 129470-08350

Yanmar Part numbers:  #200
Starter Side 121370-08351

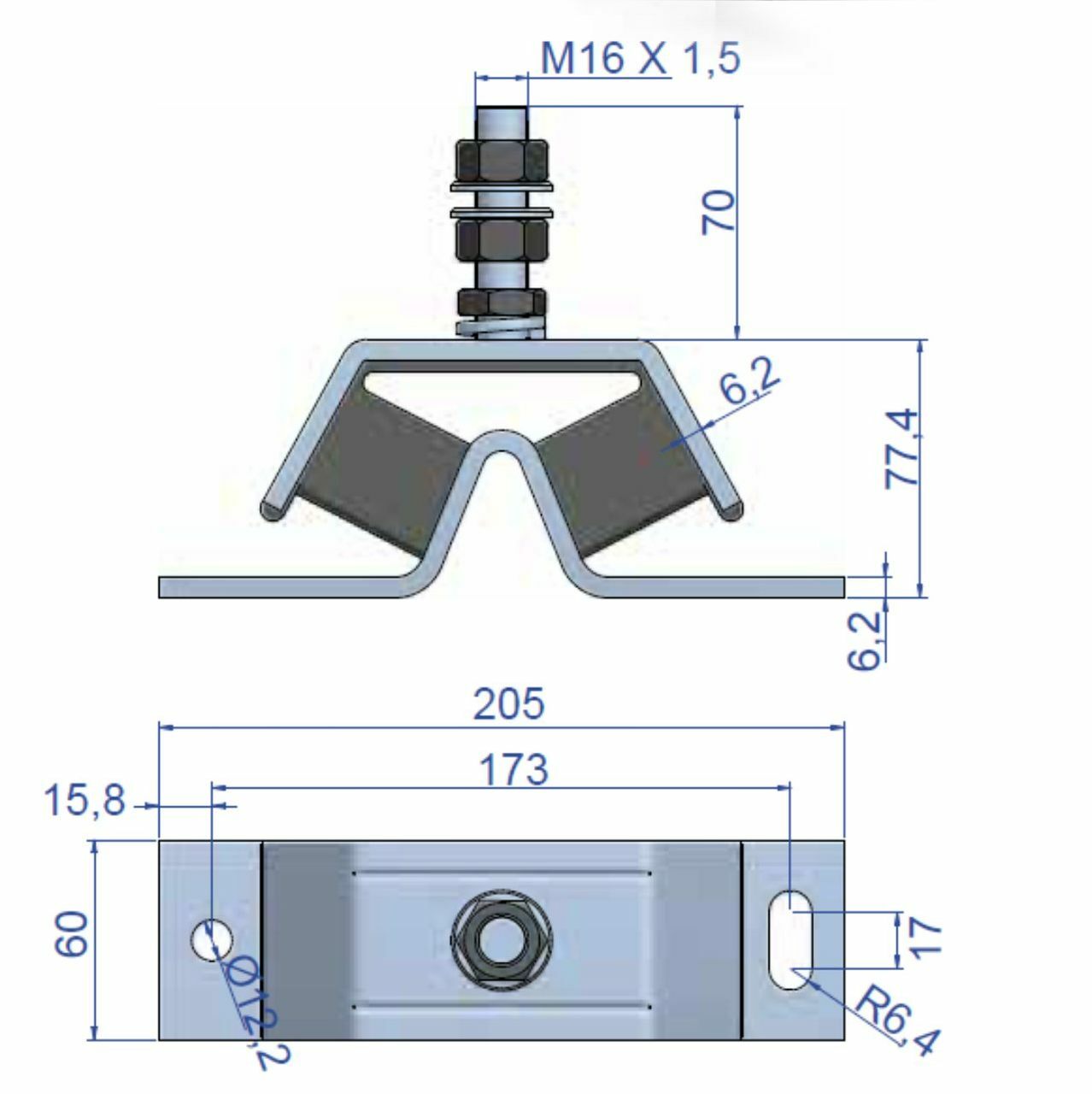

Mounting holes for our Oceanic Innovations motor mount are in the same location as the original Yanmar motor mounts.  No changes to bunks are required.  These mounts are a direct replacement for your original or OEM Yanmar motor mounts.

Significant improvements over the original mounts
- Stainless Steel - Will not rust like original mounts when exposed to salt water!
- Urethane - Will not deteriorate with exposure to diesel fuel!
- Roll Over Protection -(strap sold separately) In the unlikely event of a vessel roll over your motor WILL NOT SEPARATE from your motor bunks.

Issues with original steel and rubber mounts that will not occur with these motor mounts!

1 - Rust - When your old mounts rust the rubber will detach from the mount making a dangerous situation of excessive vibration that could cause your sail drive seals to tear.  Water needs to stay on the outside of your boat!

2 - Rubber Swelling due to diesel fuel - Rubber in the original mounts will swell due to intermittent exposure to diesel fuel.  Once the rubber swells it contributes to the rubber detaching from the steel.  Also causing excessive vibration and potentially causing Sail Drive seals to leak water inside your vessel.

3 - Roll Over Separation Protection -(strap sold separately) In the unlikely event your vessel rolls over.  Your motor WILL NOT separate from your bunks.  All Oceanic Innovations designed motor mounts incorporate a bracket that locks the top and bottom pieces of the bracket together.  The mount is designed to allow for proper absorption of the motors vibration while preventing the top and bottom of the motor mount from separating!

Click here to add the Separation Prevention Strap To Your Order
.
